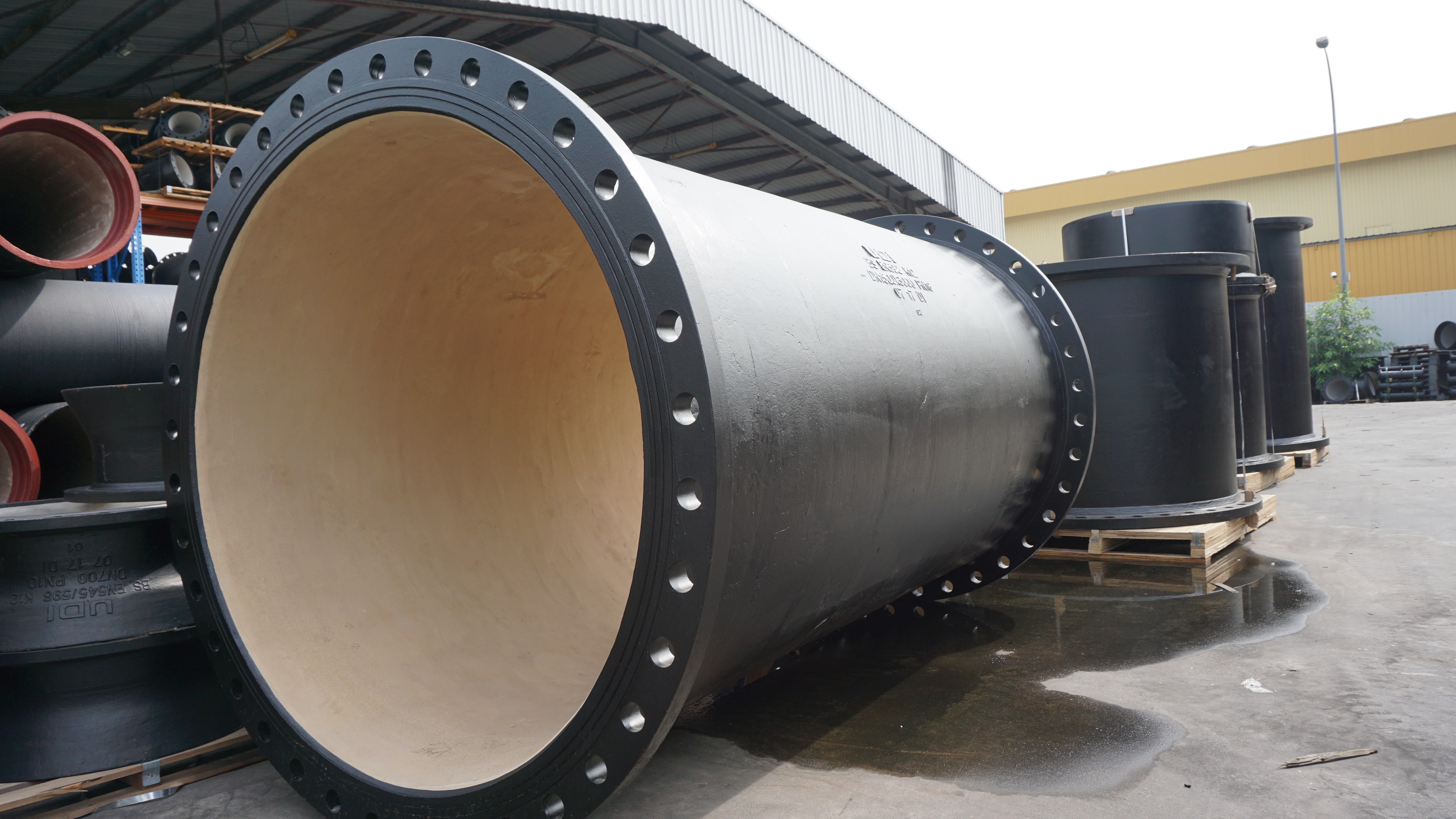

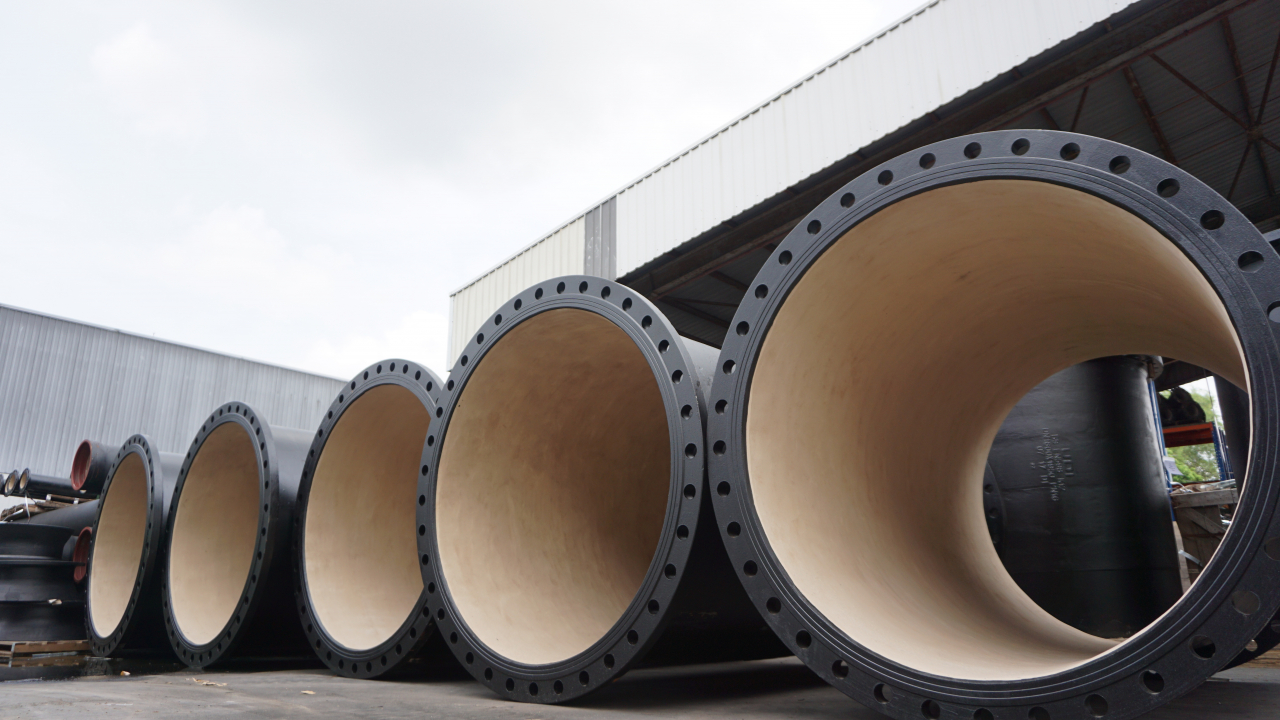

Ductile Iron flanged pipes
Feature:
Suitable for above ground applications in water and sewage treatment works, pumping statons, fire mains etc. Rigid, self-anchoring joints that provide easy installation and removal of valves, hydrants etc. Also allows pipe sections to be installed or dismantled in-line. Customisation according to your project's requirement i.e. double-flanged, single-flanged, puddle flanges. Excellent corrosion resistance and high material strength resists heavy impact and handles extreme external loadings.
Specification:
BS EN 545:2010 or BS EN 598:2007 + A1:2009
externally metalic zinc coated & bituminous, internally cement *mortar lined c/w push-in rubber rings. (*Ordinary portland cement, high alumina cement, sulphate resisting cement, and other options including epoxy or polyurethane coatings)
Screw-on or weld-on flanges with precision workmanship that offers leak proof quality.
Flange standard includes:
-EN1092-2, in PN10, PN16, PN25.
-ANSI 125/150
-JIS 5K/10K
Sizes available:
DN80 to DN2000
