Ductile Iron fittings
Feature:
Designed to integrate seamlessly with all of UDI Ductile Iron pipelines. Available in socketed or flanged joints to suit your requirements. Comprehensive range of Ductile Iron fittings that include:

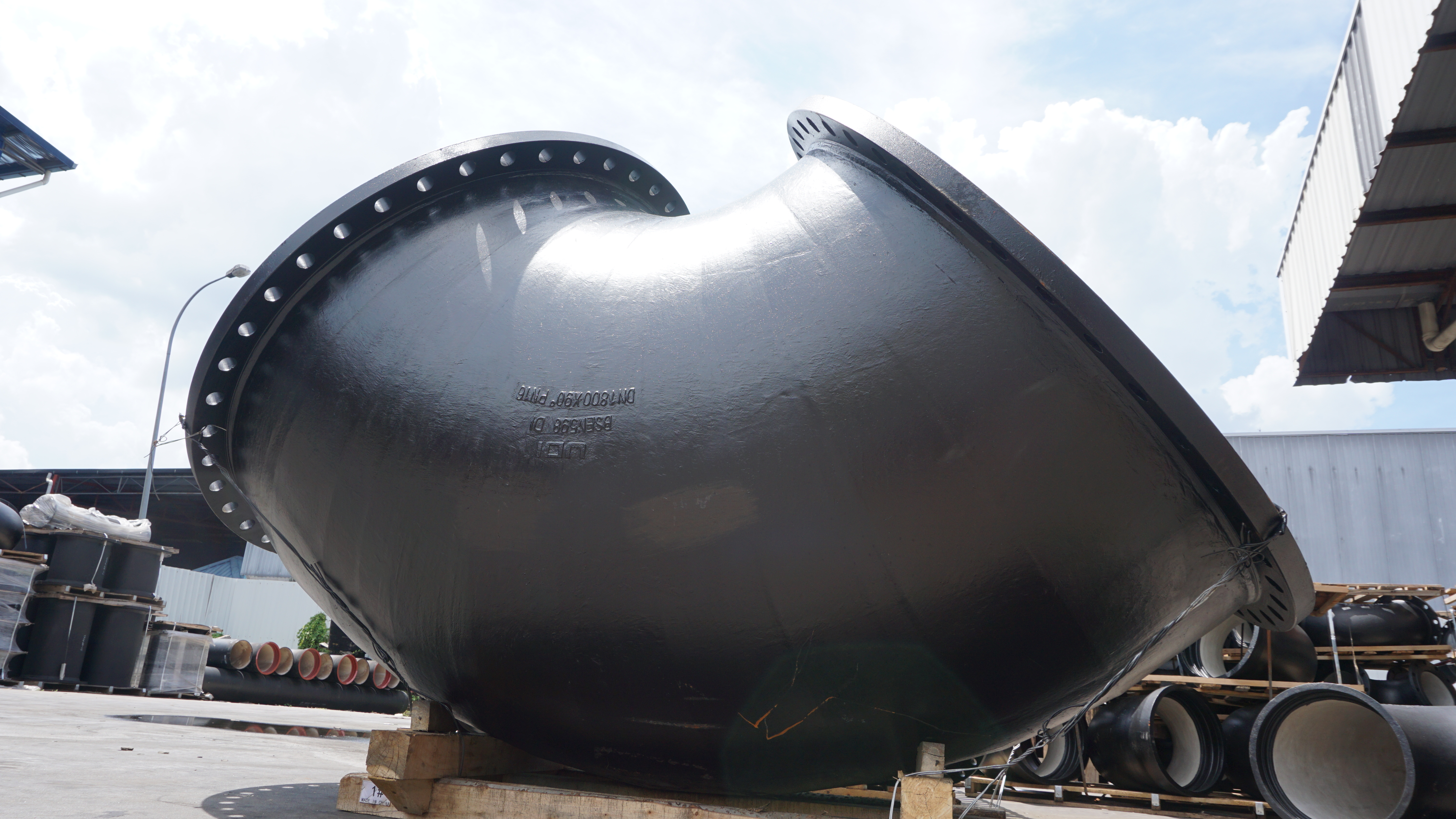

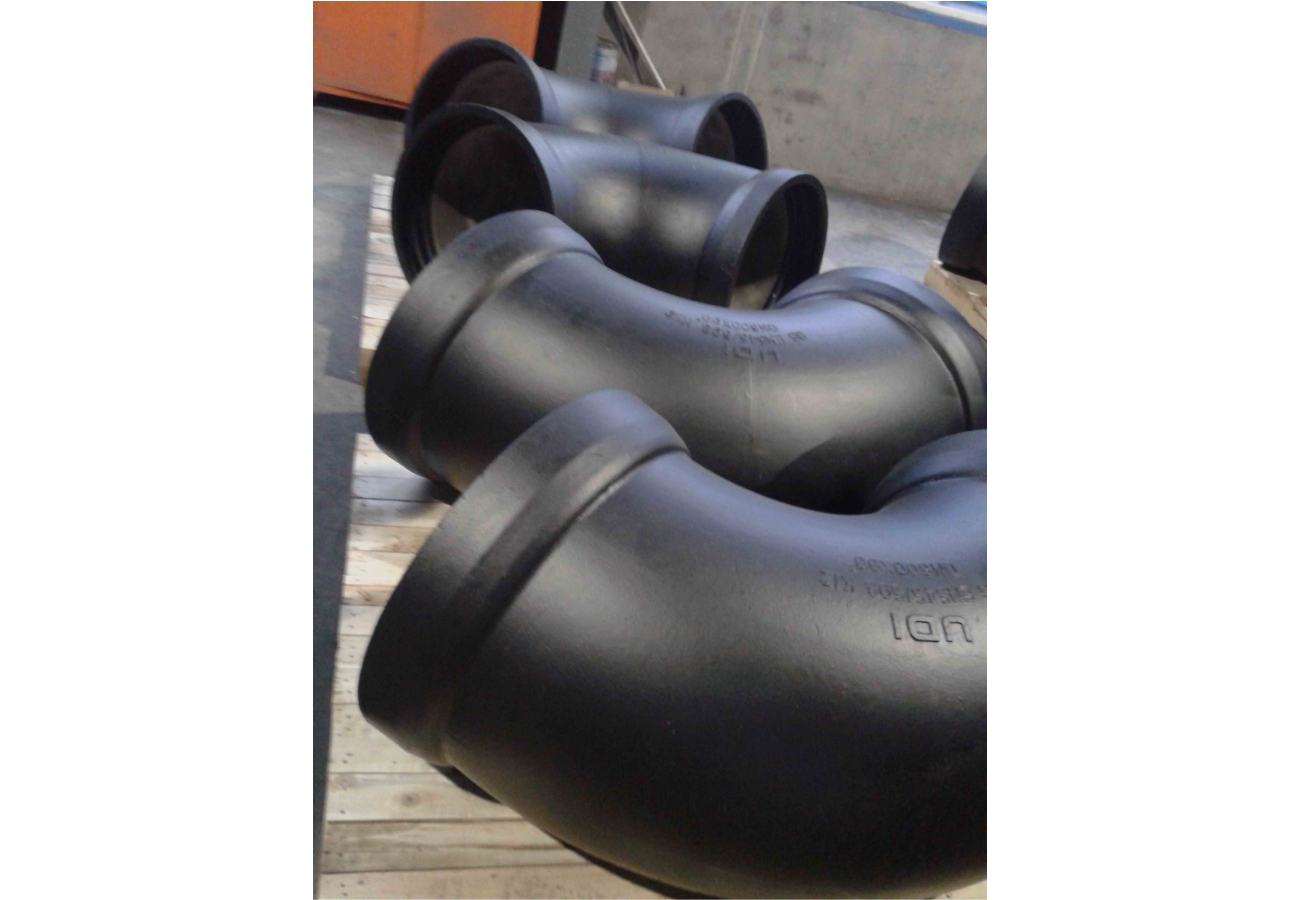

-bend (90°, 45°, 22.5°, 11.25°)

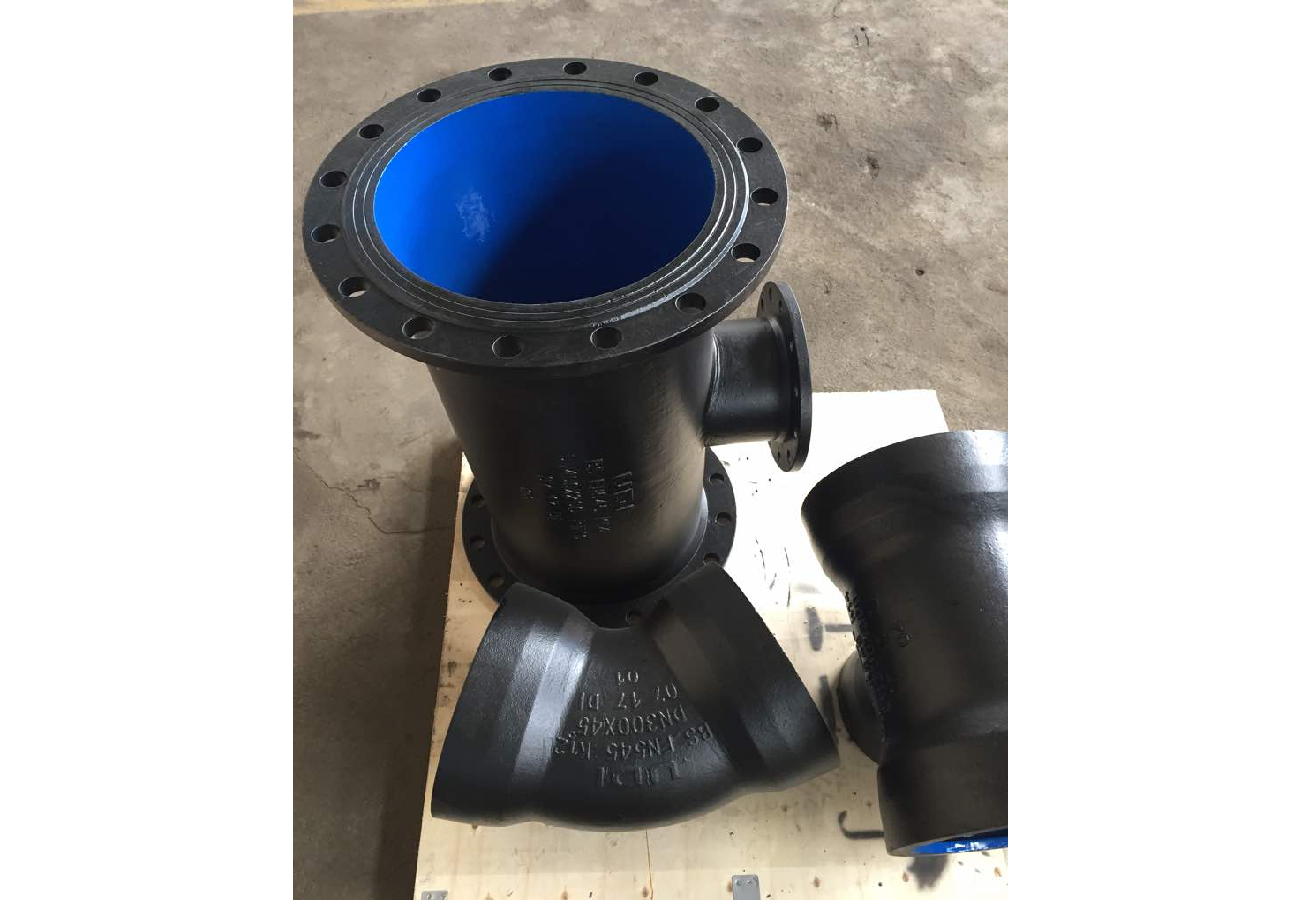

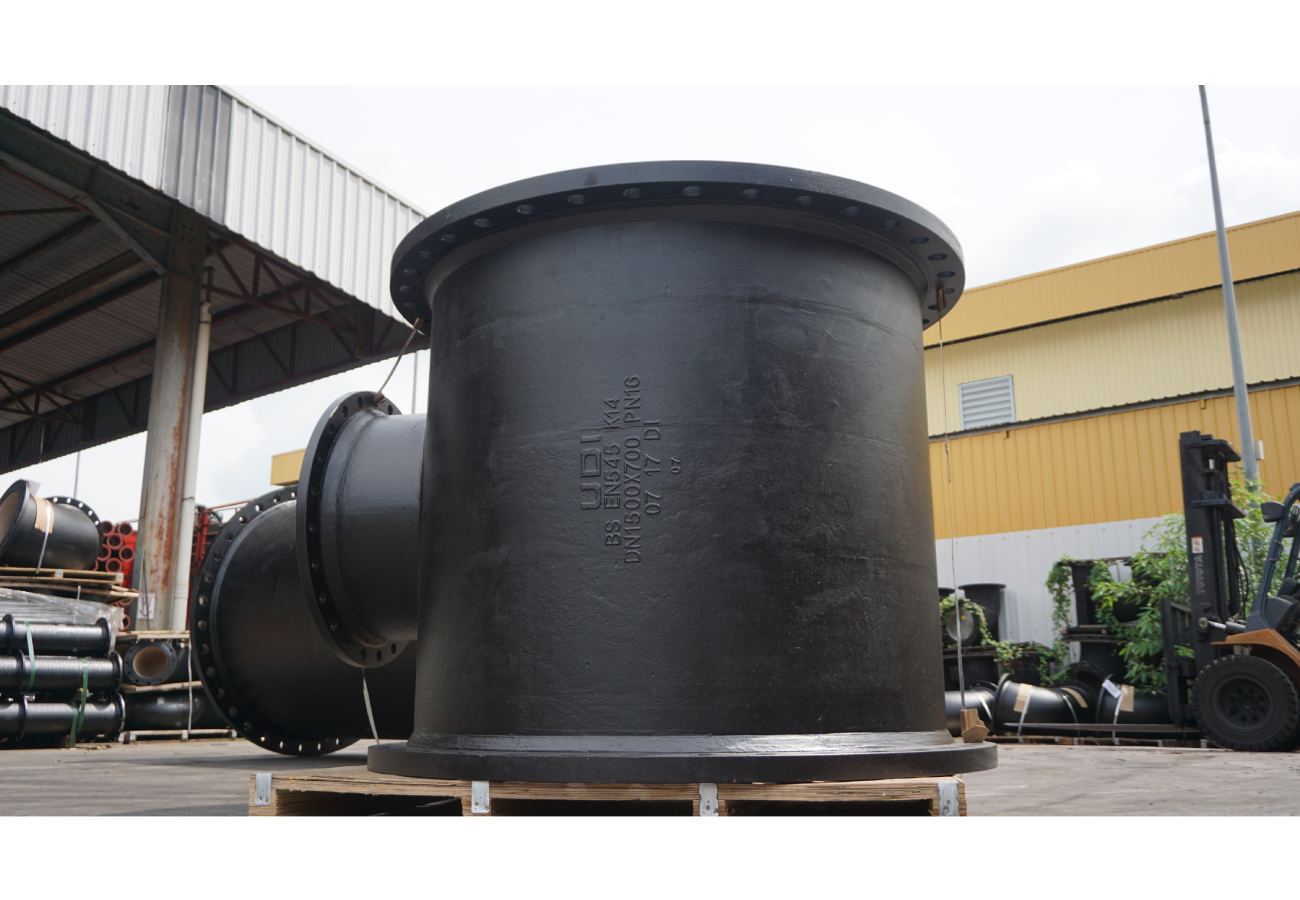

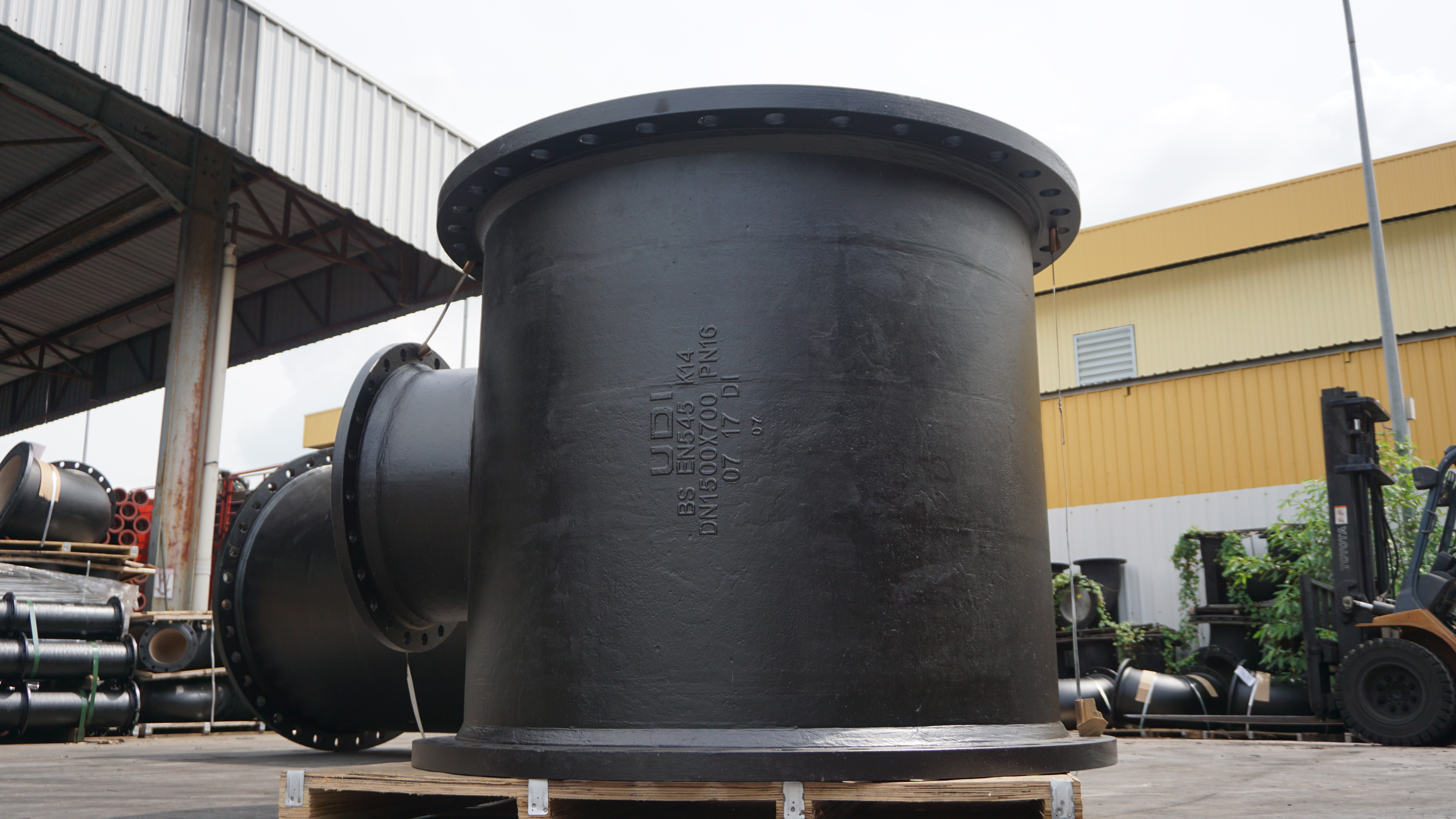

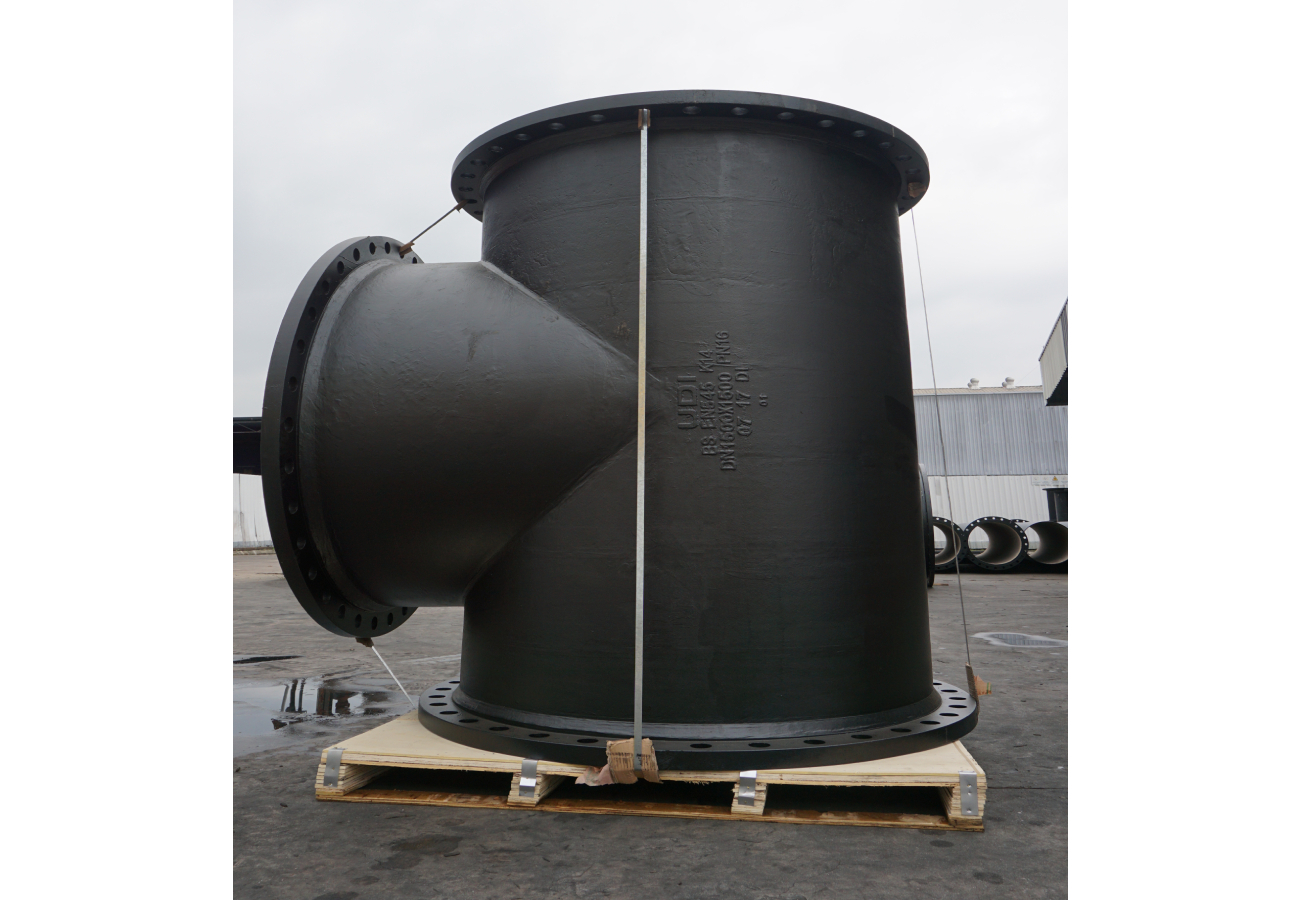

-tee (equal, reducing, radial, level invert, 45° angle branch, 'Y')
-taper (concentric, flat)
-duckfoot bend (90°)
-long radius bend (90°)
-flanged bellmouth
-blank flange
-flanged spigot
-flanged socket
-socket collar
Specifitcation:
BS EN 545:2010 or BS EN 598:2007 + A1:2009
externally metalic zinc coated & bituminous, internally cement *mortar lined c/w push-in rubber rings. (*Ordinary portland cement, high alumina cement, sulphate resisting cement, and other options including epoxy or polyurethane coatings)
Flange standard includes:
-EN1092-2, in PN10, PN16, PN25.
-ANSI 125/150
-JIS 5K/10K
Sizes available:
DN80 to DN2000
